Pressfit EVO386 Ceramic Bottom Bracket for Shimano/SRAM GXP Cranks

EVO386 frame standard was introduced in 2011 with the same inner diameter of PF30 (46mm) but a wider width of 86.5mm. Its oversized design allows 30mm spindle cranks to work with. EVO386 Shimano/SRAM GXP version bottom bracket moves a step further to accept 24mm spindle Shimano and 22-24mm spindle SRAM GXP cranks without any additional adapters. Its integrated design brings a superior performance without any creaking noise.

Features:
- Brand new designed CNC cups with lighter weight and more strength
- ABEC 7 standard alloy steel bearing races
- Grade 3 Si3N4 ceramic balls - highest precision in the market
- Pre-lubricated with HSC Ceramic Grease and sealed.
- Specially designed Nylon bearing retainer for more shock absorbing and less friction
- Light touch rubber seals - super smoothness

Weight:
- 100g for Shimano cranks
- 105g for SRAM GXP cranks

Frame requirements:
- EVO386 standard frame with shell ID 46mm, width 86.5mm

Crank compatibility:
- 24mm spindle cranks, e.g. Shimano Dura Ace, Shimano Ultegra, Shimano 105, Shimano Tiagra, FSA etc.
Or
SRAM Rival/Force/Red, Truvativ and Bontrager GXP 22-24mm cranks (HSC GXP adapter included)

Use "Product Finder" to find the compatible bottom bracket if you are not sure.

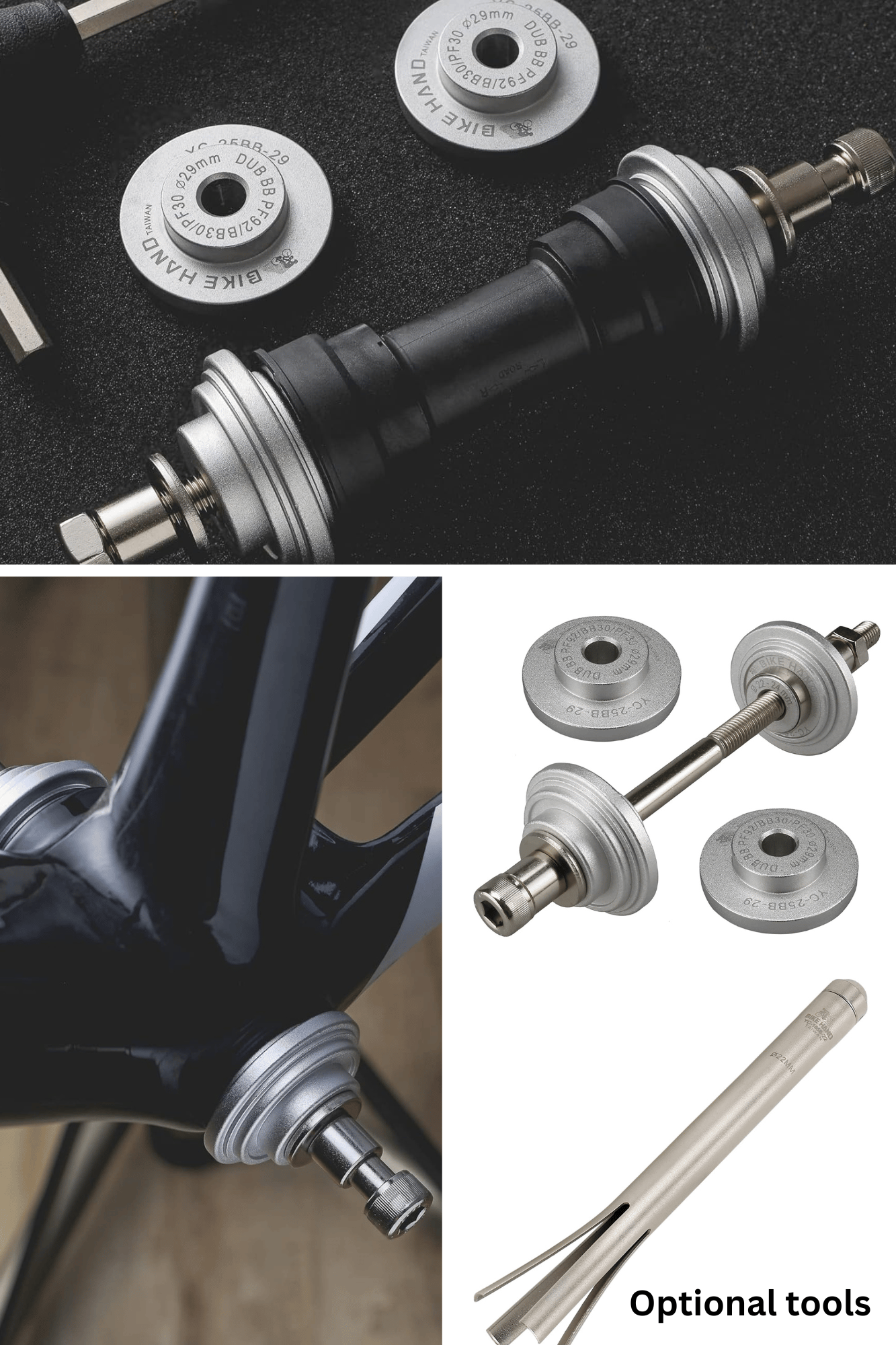

Learn more about the compatible pressfit installation tool

Learn more about the compatible bottom bracket removal tool
