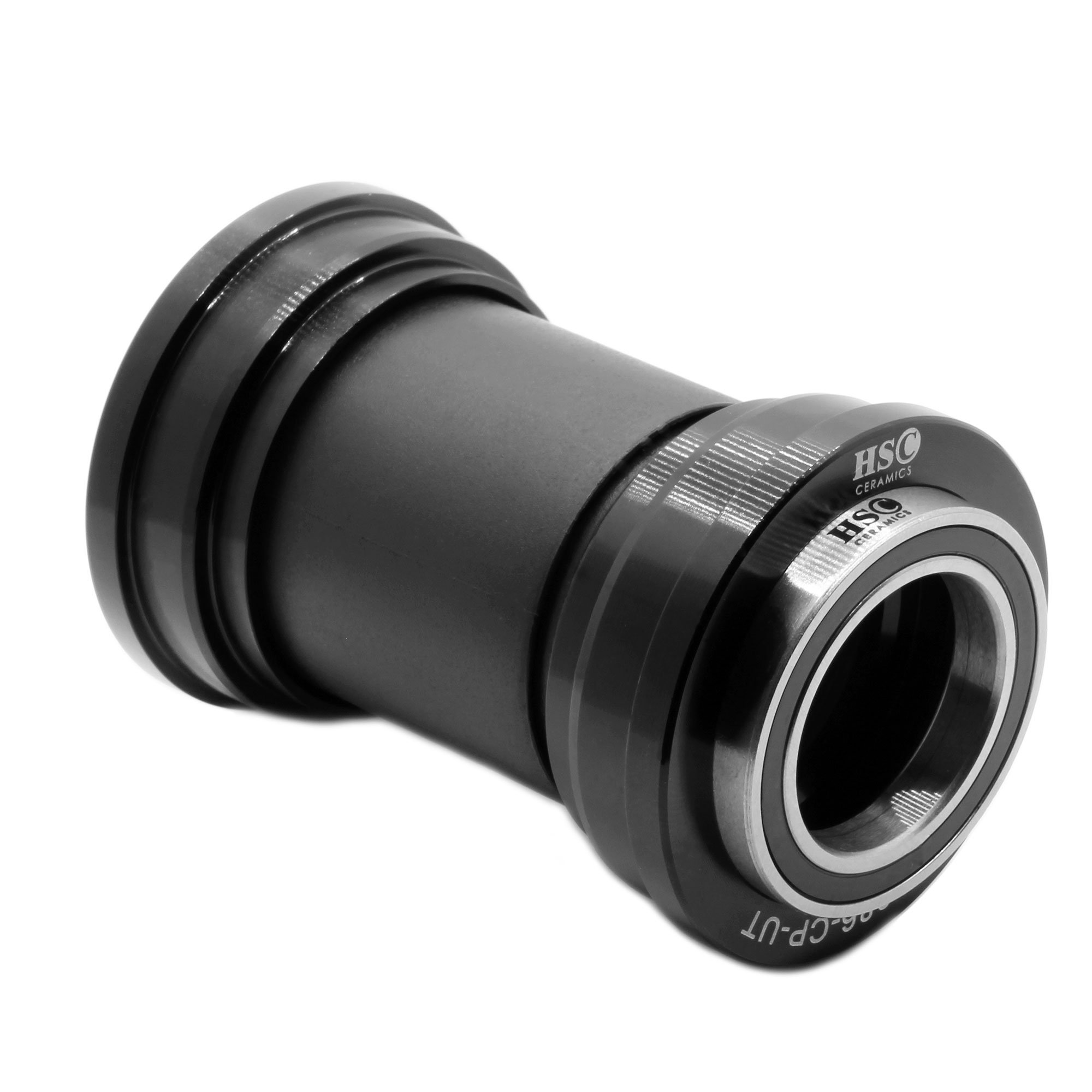

Ceramic EVO386 to Campagnolo Bottom Bracket
Pressfit EVO386 Ceramic Bottom Bracket for Campagnolo Cranks
Use "Product Finder" to find the compatible bottom bracket
EVO386 frame standard was introduced in 2011 with the same inner diameter of PF30 (46mm) but a wider width of 86.5mm. Its oversize design allows 30mm spindle cranks to work with. EVO386 Campagnolo version bottom bracket moves a step further to accept 25mm spindle Campagnolo cranks without any additional adapters. Its integrated design brings a superior performance without any creaking noise.
Features:
-
Brand new designed CNC cups with lighter weight and more strength
-
ABEC 7 standard alloy steel bearing races
-
Grade 3 Si3N4 ceramic balls - highest precision in the market
- Pre-lubricated with HSC Ceramic Grease and sealed.
-
Specially designed Nylon bearing retainer for more shock absorbing and less friction
-
Light touch rubber seals - super smoothness
Weight:
-
100g for Campagnolo cranks
Frame requirements:
- EVO386 standard frame with shell ID 46mm, width 86.5mm
Crank compatibility:
- Campagnolo 25mm spindle cranks

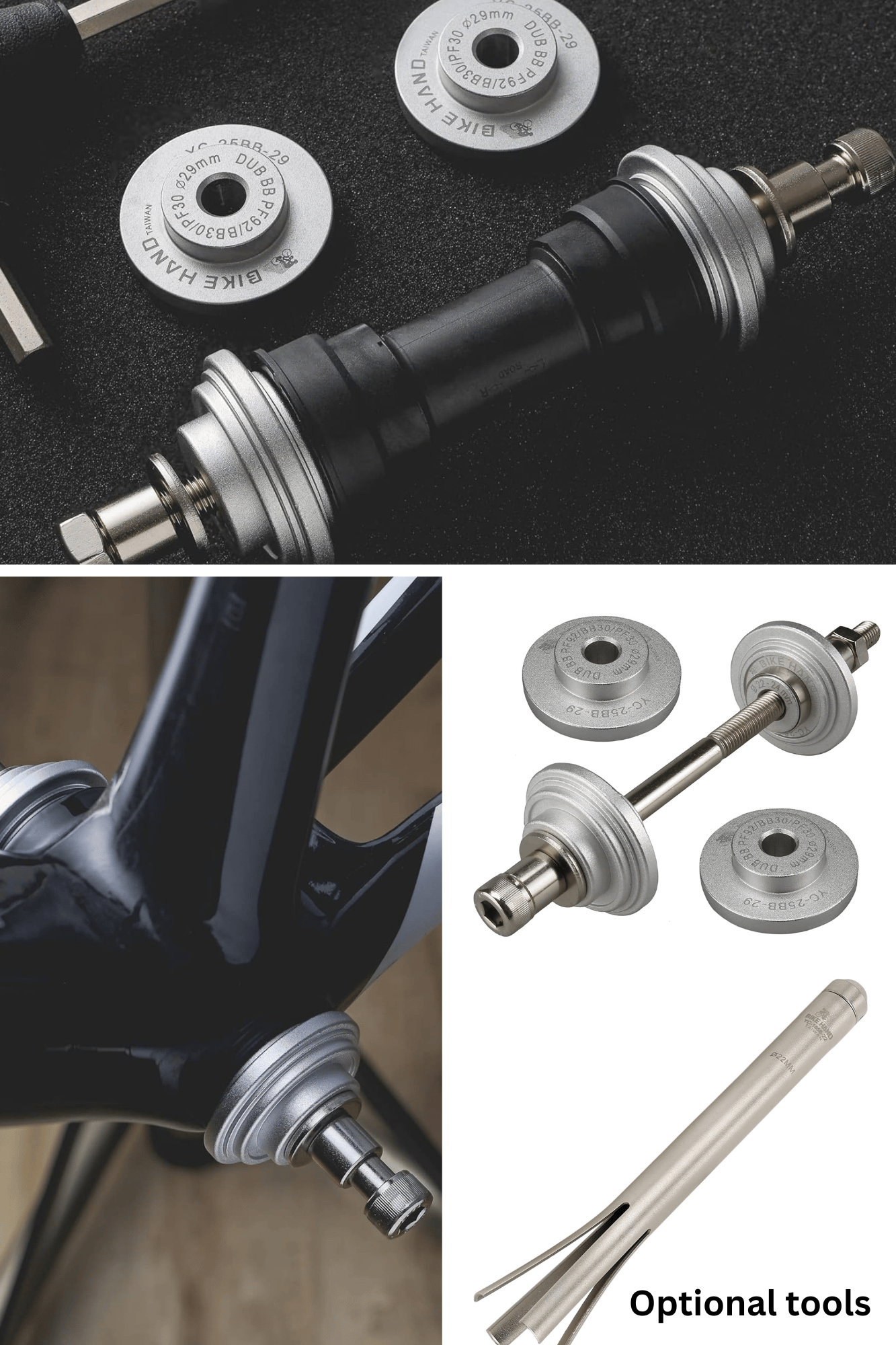

Learn more about the compatible pressfit installation tool
Learn more about the compatible bottom bracket removal tool
