Ceramic EVO386 Bottom Bracket
Pressfit EVO386 Ceramic Bottom Bracket
Use "Product Finder" to find the compatible bottom bracket
EVO386 frame standard is introduced in 2011 with the same inner diameter of PF30 (46mm) but a wider width of 86.5mm. Its oversize design allows 30mm spindle cranks to work with. Its integrated design brings a superior performance without any creaking noise.
Features:
-
Designed for a standard EVO386 frame (86.5mm width) to work with a EVO386 compatible 30mm crankset (not a BB30 standard crankset)
-
Integrated seal and pre-assembled HSC ceramic bearings
-
ABEC 7 standard alloy steel bearing races
-
Grade 3 Si3N4 ceramic balls - highest precision in the market
-
Pre-lubricated with HSC Ceramic Grease and sealed.
-
Specially designed Nylon bearing retainer for more shock absorbing and less friction
-
Light touch Dual lip rubber seals for a better protection
Weight:
- 79 g
Frame requirements:
- EVO386 standard frame (non-thread) with shell ID 46mm, width 86.5mm
Cranks combination:
- EVO386 compatible 30mm crankset

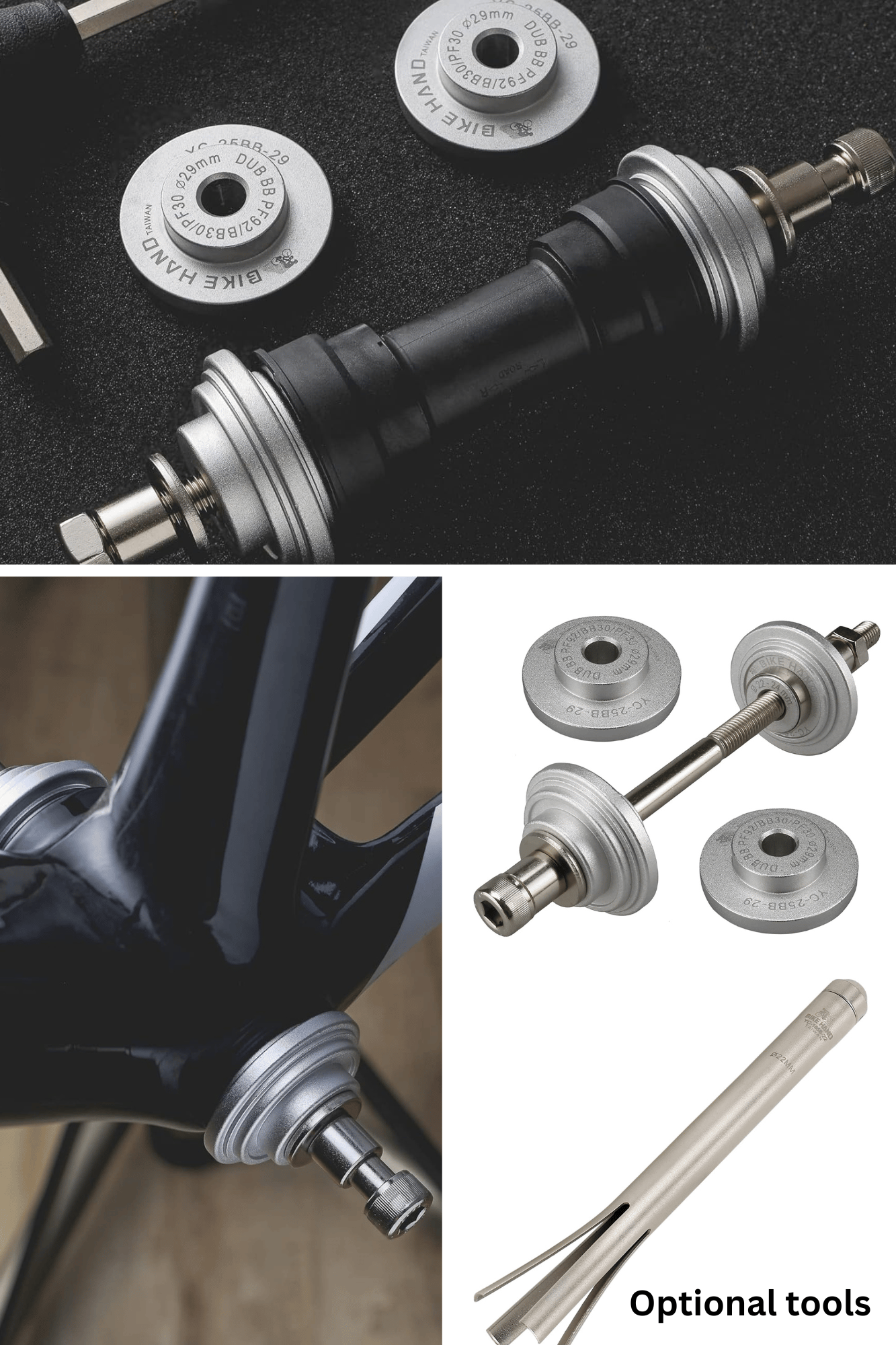

Learn more about the compatible pressfit installation tool
Learn more about the compatible bottom bracket removal tool
