BB30 Ceramic Bottom Bracket MTB

Use "Product Finder" to find the compatible bottom bracket

Cannondale introduced the BB30 standard in 2006. It is aiming to increase the pedalling efficiency by decreasing the distance between the pedals - decreased Q-factor.

With a larger 30mm spindle diameter it improves the crank stiffness, in the meantime, reduces the twisting to conserve the energy more efficiently.

BB30’s bottom bracket bearings fit inside of the frame bottom bracket shell directly requires the shell ID 42mm and the width 68mm/73mm.

Features:
- Fully compatible with BB30 system
- ABEC 7 standard alloy steel bearing races
- Grade 3 Si3N4 ceramic balls - highest precision in the market
- Pre-lubricated with HSC Ceramic Grease and sealed.
- Specially designed Nylon bearing retainer for more shock absorbing and less friction
- Heavy duty rubber seals - extra protection

Weight:
- 54 g

Include:
- 2 x HSC hybrid ceramic bearings, 2 x dust shields, 2 x circlips and 1 x wave spacer

Frame requirements:
- BB30 standard frame (bearings directly pressed into the frame) with shell ID 42mm, width 73mm (MTB)
e.g. Cannondale,BMC SLR01,BMC RM01 etc.

Crank compatibility:
- BB30 cranks with spindle diameter 30mm

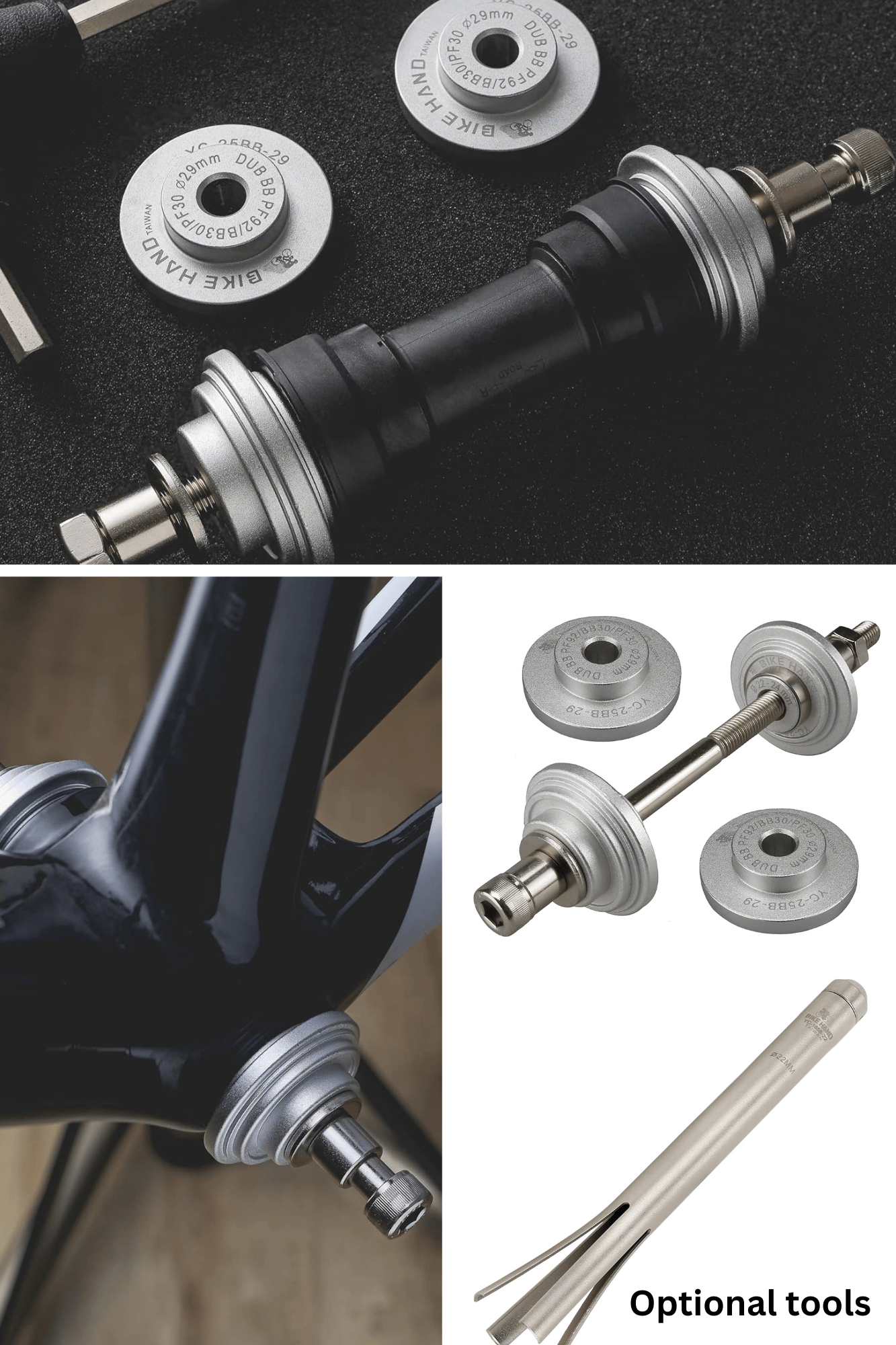

Learn more about the compatible pressfit installation tool

Learn more about the compatible bottom bracket removal tool
